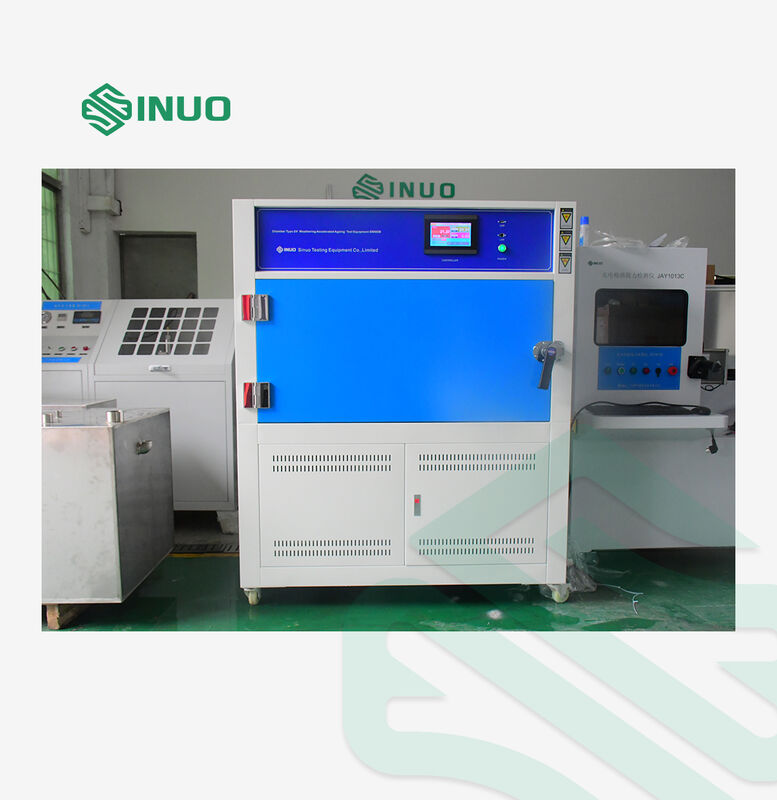

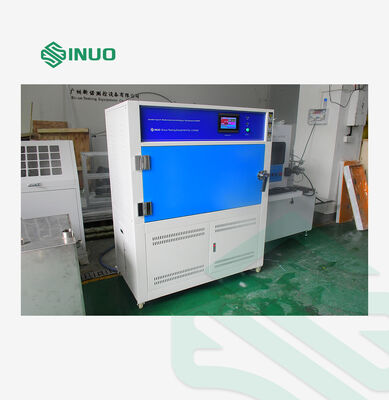

UV Weatherproof Test Chamber for Accelerated Material Aging ASTM G154

UV Weatherproof Test Chamber for Accelerated Material Aging ASTM G154

Marka Adı:	Sinuo
Model Numarası:	SN882B
Adedi:	1
fiyat:	pazarlık edilebilir
Ödeme Şartları:	T/T
Tedarik Yeteneği:	Ayda 5 takım

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Sertifika:

Calibration Certificate (Cost Additional)

Lamba uzunluğu:

1220mm

Lamba ömrü:

1600'den fazla

Algılama Dalga Boyu Aralığı:

200nm~480nm

Işınım ölçüm aralığı:

0,4W/m²~1,6W/m²

Işınlama Sıcaklığı:

RT→+70°C≤45 dk

Yoğuşma Sıcaklığı:

RT→+60℃≤45 dk

Ambalaj bilgileri:

kontrplak durumda

Yetenek temini:

Ayda 5 takım

Ürün Tanımı

UV Weatherproof Test Chamber for Accelerated Material Aging ASTM G154

Product Overview

The UV Weatherproof Test Chamber is designed and manufactured according to the standard requirements of ISO 4892-82, ASTM G154, ISO 4892-3, ISO 11507, ASTMD 4329, and others. This chamber simulates the hazards caused by sunlight, rain, and dew exposure. It utilizes fluorescent UV lamps to simulate sunlight effects and condensed moisture to replicate rain and dew conditions. Test materials are placed at specific temperatures and subjected to alternating light and moisture cycles in programmed sequences.

The testing process, which can take from days to months, reproduces outdoor environmental hazards including: fading, discoloration, loss of gloss, chalking, cracking, turbidity, bubbles, embrittlement, strength loss, and oxidation. UV test data assists in new material selection and formulation durability evaluation for various industries including coatings, inks, paints, resins, plastics, rubber, printing and packaging, aluminum profiles, adhesives, automotive, motorcycle, cosmetics, metals, electronics, and electroplating.

Main Technical Parameters

Parameter	Specification
Model	SN882B
Sample Placement Area	Chamber type WDH=1140600500(mm)
Sample Size	WDH=1100600500(mm) Inner size sample
Shape Space	Approximately 14001750750(mm) W×H×D
Center Distance in the Lamp	70mm
Distance Between Test Surface and Lamp Center	50±3 mm
Nozzle Quantity	Top row 4 pcs
Spraying Pressure	70～200Kpa adjustable
UV-B Lamp Irradiation Distribution	Standard machine irradiation intensity 0～0.9 W/m² at 313nm, adjustable
UV-A Lamp Irradiation Distribution	Standard machine irradiation intensity 0～0.9 W/m² at 340nm, adjustable
Lamp Length	1220mm
Lamp Power	40W
Lamp Lifespan	More than 1600 hours
Number of Lamps	8 pcs lamps in the top row
Weight	80 kg
Maximum Power	3 KW
Maximum Current	15A
Power Supply Conditions	AC 220V single-phase two-wire with protective grounding; voltage fluctuation range ±10%V; frequency fluctuation range 50/60Hz; TN-S or TT power supply; protective grounding resistance less than 4Ω

Note: Customers can select either UV-A or UV-B lamps when placing an order. If no specific instructions are provided, the default configuration will be UV-A lamps.

Performance Indicators

Parameter	Specification
Operating Environment Conditions	Values measured at ambient temperature +25℃, relative humidity ≤85%, no test sample in chamber
Temperature and Humidity Range	Irradiation temperature: 50～70℃ Condensation temperature: RT～60℃ Spraying temperature: room temperature Relative humidity: Condensation cycle ≥85%RH; Irradiation cycle ≤75%RH
Main Technical Parameters	Temperature resolution: 0.01℃ Temperature deviation: ±1℃ Temperature uniformity: 2℃ Temperature fluctuation: ±1℃
Heating Rate	Irradiation temperature RT→+70℃ ≤45 min Condensation temperature RT→+60℃ ≤45 min

Structural Characteristics

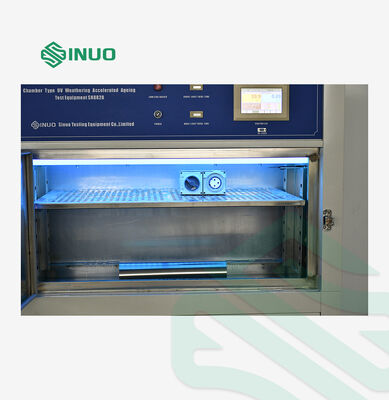

Chamber Structure: Inner chamber made of SUS304# stainless steel; outer chamber made of painted steel plate
Irradiation System: Lamp tubes evenly arranged on both sides for uniform sample irradiation
Water Tank: 25mm depth with controllable water level
Sample Frame: Stainless steel welded construction with spring buckle fixation for easy installation
Mobility: Fixed casters and casters installed at bottom for easy movement and positioning
Water Supply: Manual or automatic mode selection available
Heating System: Special isolation type radiation heating device and air supply system for uniform heat distribution
Condensation: Test sample surface directly constitutes inner chamber wall for enhanced condensation
Spray System: Specially made spray device with automatic spray head and adjustable water pressure
Chamber Cover: Two-way flip cover design for easy opening and closing

Control Panel & Components

Control Panel: Power switch, alarm, radiation accumulation timer, radiation ammeter, radiation intensity adjustment knob, controller
Power Distribution Control Cabinet: Cooling fan, distribution board, controller
Lamp Arrangement:

System Components

Radiation Heating System: Scale-type heating tube, multi-wing centrifugal fan air supply loop, temperature controller with contactless SSR output control
Condensation Heating System: Steam heating method with nickel-metal alloy heating tube and P.I.D control
Water Supply System: Manual and fully automatic control systems with water pipe connection
Drainage System: Drain valve control with manual drainage and automatic over-water overflow control
Spray System: Booster pump for water pressure control with fully automatic timing and cycle control

Electrical Control System

Controller: Imported LCD touch screen temperature controller (Q-TEST) for irradiation temperature, condensation temperature, timing, and cycle control
Irradiance Meter/Solar Eye: Model TEMI-UVI with detection wavelength range 200nm-480nm, measurement range 0.4-1.6 W/m²
Temperature Input: Human Machine Interface with touch input
Program Capacity: Maximum 120 groups, 1-99 segments per program, 1200 segment memory capacity
Communication: RS-232 interface for monitoring and remote control system
Operation Modes: Programming method / Fixed value method
Power Off Memory: Hot start/cold start/stop recovery modes
Scheduled Startup: Programmable automatic startup timing
Curve Recording: 60-day maximum recording time with 1.5-minute sampling cycle

Safety Protection Systems

Test Chamber: Extreme over-temperature protection, water shortage protection
Booster Pump: Water shortage protection, water pressure over-high protection
Heating System: Heating pipe dry burning protection, water supply abnormality, drainage abnormality
Power System: Leakage protection, overload and short circuit protection
