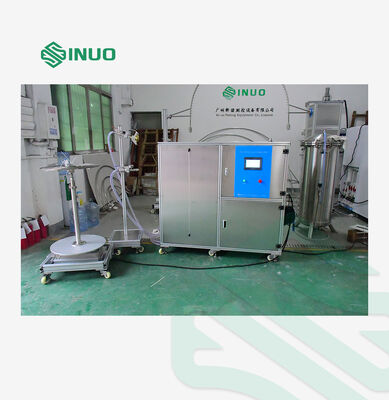

IEC 60529 IPX3~IPX6 Water Spray Test Equipment For Electronic & Automotive Products

IPX3/4

Parameters of Spray Nozzle

Outer diameter: Ф102mm, spherical diameter: SФ75.5mm, 1 hole at the center, 2 inner circles of 24 holes at 30° pitch,4 outer circles of 96 holes at 15° pitch , total 121 holes of Ф0.5mm, made of brass.

Water Flow

10L/min±5%, flow meter is adjustable through rotameter, electronic flowmeter is optional

Pressure

50～150Kpa, the pressure gauge measuring range: 0～0.25Mpa

Moving Shield

Made of aluminum, can be detachable

Water Spray Directions

The angle of water spraying can be adjusted

IPX5/6

Parameters of Hose Nozzle

IPX5: Ф6.3mm; IPX6: Ф12.5mm

Delivery Rate

IPX5: 12.5±0.625L/min

IPX6: 100±5 L/min

Distance from Nozzle to Enclosure Surface

2.8m (The distance from the nozzle to the center surface of the turntable, standard requires 2.5-3m)

Water Jet Directions

The angle of water jetting can be adjusted

General

Control & Operation

PLC and touch screen intelligent control system

Nozzle Fixed Method

Spray nozzle and hose nozzles are fixed on the support

Pressure Gauge

0~0.25MPa, can be displayed

Test Duration

0.01S～99.9 min, can be preset

Turntable

Diameter: Φ600mm, rotation speed: 1r/min, bearing capacity: ≤50kgs

Water Storage Tank

This test system adopts open type structure, the test water is not recycled. The test system is equipped with an approximately 500L stainless steel water storage tank. The water storage tank is equipped with a water level float valve to automatically control the water inlet, and has high and low water level alarm detection, to effectively prevent the pump from being damaged due to dry water. The water storage tank and electrical control part are integrated.

Safety Protection

Phase sequence protection, leakage protection, water shortage protection, abnormal protection.

Power Supply

AC220V,50Hz
