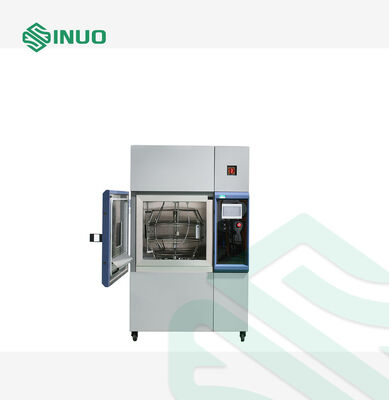

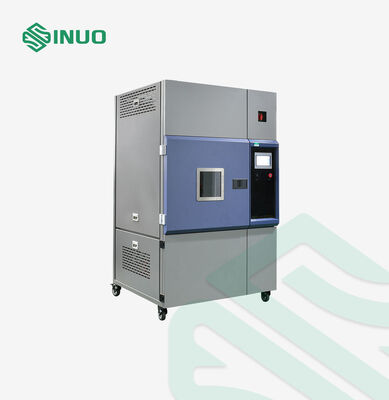

Xenon Arc Weathering Test Chamber Water-Cooled Xenon Test Chamber

Xenon Arc Weathering Test Chamber Water-Cooled Xenon Test Chamber

Marka Adı:	Sinuo
Model Numarası:	SN883-X65
Adedi:	1
fiyat:	Customized
Ödeme Şartları:	T/T
Tedarik Yeteneği:	30 takım/ay

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Sertifika:

Calibration Certificate (Cost Additional)

Ekipman boyutları:

124cm×114cm×202cm (G×D×Y)

Pozlama Alanı:

6500cm2

Işık Kaynak Yaşam:

2000h

Işınım Ekran Bandı:

340nm, 420nm, 300 ～ 400nm isteğe bağlı

tahta sıcaklığı:

40°C~110°C

Siyah İşaret Sıcaklığı:

40°C~120°C

Odadaki sıcaklık:

38°C~80°C

Odada nem:

%30 BN～ %75 BN

Ambalaj bilgileri:

kontrplak durumda

Yetenek temini:

30 takım/ay

Ürün Tanımı

Xenon Arc Weathering Test Chamber Water-Cooled Xenon Test Chamber

Complied Standards & Clauses

This water-cooling xenon weathering test chamber conforms to multiple test methods such as AE J2412, SAE J2527, ASTMG 155ISO 105-B02, ISO 105-B04, ISO 105-B06, ISO 4892-2-A, ISO 11341-1, etc.

Equipment Overview

The Xenon Arc Weathering Test Chamber is an advanced environmental testing solution designed to simulate natural sunlight and weather conditions for accelerated aging and durability testing. Using a long-arc water-cooled xenon lamp as the light source, the chamber replicates UV radiation, condensation, rain, and temperature cycles, providing a controlled environment to evaluate material weather resistance.

Widely applied in industries such as automotive materials, plastics, coatings, inks, textiles, electronics, packaging, and electrical appliances, this chamber helps manufacturers select new materials, optimize existing ones, and ensure product longevity under real-world conditions. Weathering tests performed in this chamber are essential for quality control, research and development, and compliance with industry standards.

Technical Parameters

Model	SN883- X65
Dimensions	124cm×114cm×202cm (W×D×H)
Temperature in the chamber	38℃～80℃
Sample temperature	Blackboard temperature: 40℃～110℃ Black mark temperature:40℃～120℃
Light source	6.5kW long arc water-cooled xenon lamp (imported from the United States Q-LAB)
Irradiance range	0.3W/m²～1.1 W/m²(@340nm) 40 W/m²～120 W/m²(@300nm～400nm)
Irradiance display band	340nm, 420nm, 300～400nm optional
Light source life	About 2000h (based on irradiance 0.51W/m2 @340nm)
Exposure area	6500cm2/ About 65 standard samples (140mm×70mm)

Environment humidity	10%RH～85%RH
Water source	Tap water: 0.14～0.3 MPa Laboratory secondary water: 0.08～0.15 MPa Laboratory secondary water consumption: about 150 L/day
Power source	AC 208V, 60Hz, three-phase five-wire (including ground wire)
Ambient temperature	18℃～28℃
Environmental conditions	Indoor, clean, less dust, flat ground, there is no corrosive, flammable, explosive gas, liquid, dust around
Drain	The height of the drain from the ground: ≤15cm Drain interface diameter: ≥5cm
Installation space	≥280cm×300cm×280cm (W×D×H)
Standard configuration and random accessories

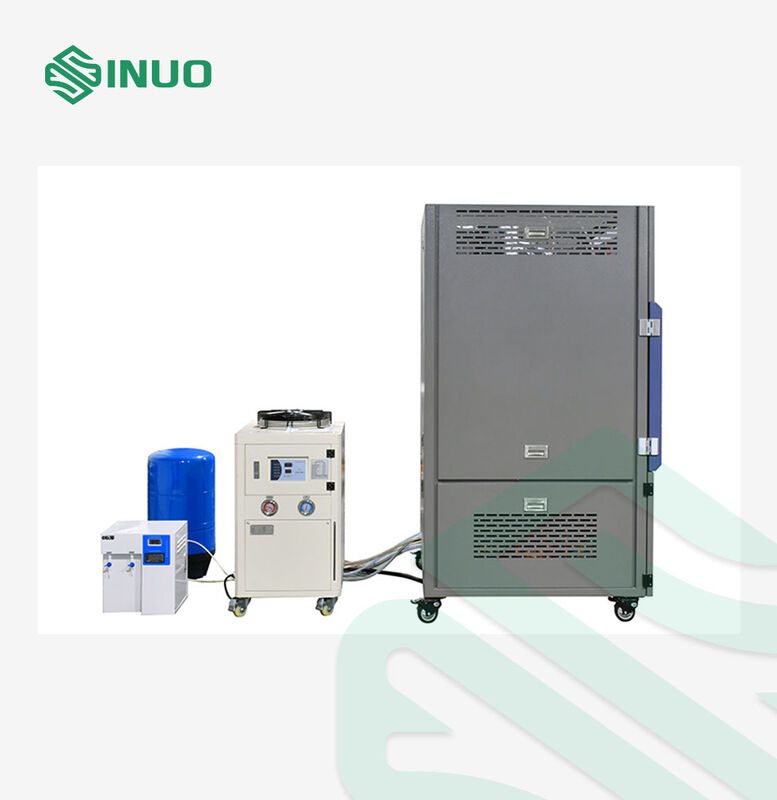

Standard configuration	Host 1 Set Q-LAB 6.5kW xenon lamp 1 PC Simulated outdoor daylight filter set 1 set Irradiance calibrator 1 set Pure water machine 1 set Chiller 1 set

Detail

Xenon Arc Weathering Test Chamber Water-Cooled Xenon Test Chamber 0
