Equipment Overview

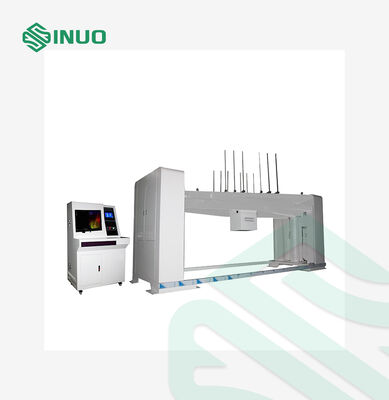

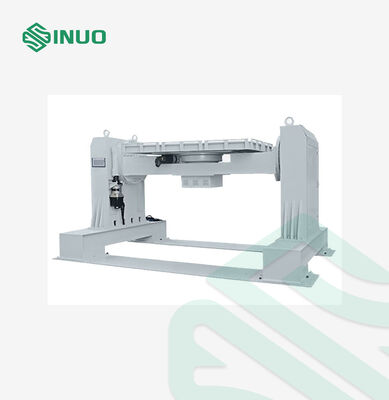

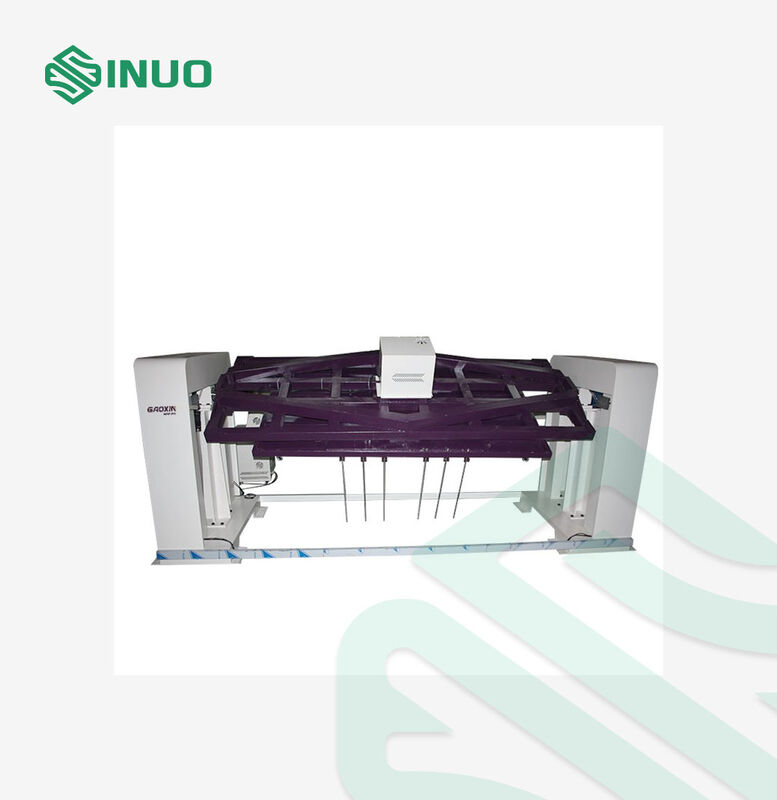

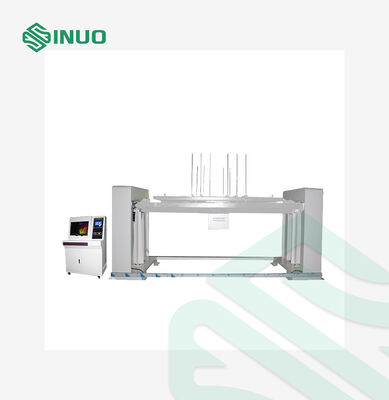

The Battery Pack Rotate Test Device is a specialized testing instrument designed for lithium-ion traction battery packs and systems in electric vehicles. It simulates real-world conditions, such as high-angle uphill, downhill, rollover, and tilt scenarios, to evaluate battery performance and safety under extreme situations.

Key Features:

• 360° Multi-Axis Rotation: Independently rotates battery packs around X, Y, and Z axes to simulate dynamic vehicle conditions.

• Intelligent Control System: Operated via PLC and touch screen, with the option for remote computer control. Test speed, angle, interval, and duration are fully programmable.

• Robust Structure: Double reinforced column support ensures stable and reliable rotation. Large perforated aluminum platform supports samples up to 2500mm × 1600mm and loads up to 2000 kg.

• Safety and Monitoring: Observe battery behavior under rotation; ensures no electrolyte leakage, no case rupture, no fire or explosion.

• Laboratory Simulation: Perfect for battery pack design optimization, product quality enhancement, and problem identification in R&D or production QA.

Applications:
Ideal for lithium battery pack manufacturers, electric vehicle manufacturers, and scientific research/testing laboratories, this device is essential for safety performance evaluation, R&D, and certification testing.

Operating Environment:

• Power Supply: AC380V±10%/50Hz, 15KW

• Ambient Temperature: 5℃–35℃

• Relative Humidity: ≤85%RH

• Must be free from high concentration dust, corrosive gases, and flammable or explosive atmosphere.

With this Battery Pack Rotate Test Device, you can ensure your EV batteries meet international safety standards such as UL2580, GB/T31467.3-2015, and ISO12405-3, providing reliable, safe, and high-quality battery systems for electric vehicles.
