Automated IPX3 IPX4 Waterproof Test Apparatus with Φ0.4mm Needle Hole and 0.07 L/min Water Flow for IEC 60529 Compliance

Automated IPX3 IPX4 Waterproof Test Apparatus with Φ0.4mm Needle Hole and 0.07 L/min Water Flow for IEC 60529 Compliance

Marka Adı:	Sinuo
Model Numarası:	SN444
Adedi:	1
Ödeme Şartları:	T/T
Tedarik Yeteneği:	Ayda 10 Set

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Sertifika:

Calibration Certificate (Cost Additional)

iğne deliği:

Φ0.4mm

yağmur hızı:

IPX3: 4S/Time (2 × 120 °); IPX4: 12S/Time (2 × 360 °);

Su akışı:

0.07 L/Minx

Basınç göstergesi:

0~0.25MPa

pikap çapı:

Φ600mm

Dönme hızı:

1 dev/dak

Test Süresi:

1-99999S önceden ayarlanabilir

elektrik kontrolü:

Plc ve dokunmatik ekran

Ambalaj bilgileri:

İhracat ambalajı

Yetenek temini:

Ayda 10 Set

Vurgulamak:

Φ0.4mm Needle Hole Waterproof Test Apparatus

0.07 L/min Water Flow Oscillating Tubes Test System

Φ600mm Turntable IPX3 IPX4 Test Equipment

Ürün Tanımı

IPX3 IPX4 Automated Oscillating Tubes Waterproof Test Apparatus IEC 60529

Complied Standards & Clauses

The SN444 IPX3~4 Oscillating Tubes Test System is a professional-grade waterproof testing solution developed in accordance with IEC60529:2013.

Product Overview

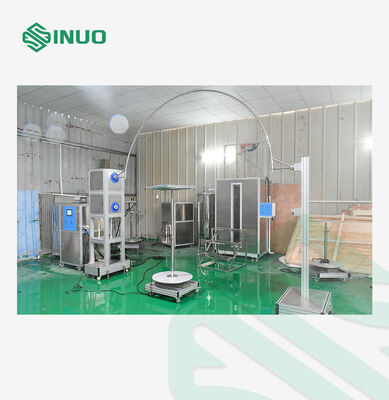

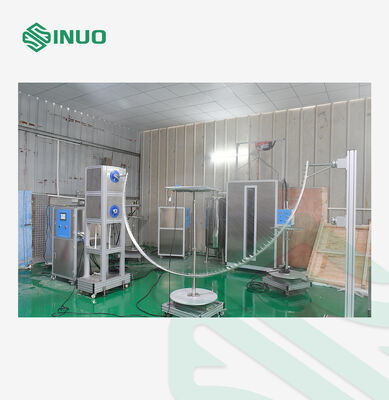

The IPX3~4 Oscillating Tubes Test System SN444 is a fully integrated waterproof testing solution designed according to IEC 60529:2013. Engineered for precision and repeatability, this system enables accurate evaluation of IPX3 and IPX4 water ingress protection levels for electrical and electronic products. It includes a complete set of oscillating tubes ranging from R200 to R1600, a durable turntable, and an intelligent water supply and control cabinet. Equipped with PLC control, frequency converter, and flow meter, the system ensures stable water flow and highly reliable test performance. With its modular structure, high automation, and wide test coverage, the SN444 is an ideal choice for laboratories, quality inspection centers, and manufacturers seeking consistent and compliant waterproof testing.

Technical Parameters

Power supply for sample	AC220V, 10A
Site requirements	Dedicated IP waterproof test room, the ground should be flat with illumination. 10A waterproof leakage switch (or socket) used for equipment. With good function of inflow and drainage. Ground installation.
Raining speed	IPX3:4s/time (2×120°); IPX4:12s/time (2×360°);
The size of the oscillating tube	Coming with R200mm,R400mm, R600mm, R800mm, R1000mm, R1200mm, R1400mm, R1600mm oscillating tubes, made of stainless steel
Needle hole	Φ0.4mm
Included angle of two holes	IPX3:120°; IPX4:180°
Electrical control	PLC & touch screen
Water flow	Can be set according to the size of the oscillating and the number of the pin holes (0.07 L/minX per hole)
Testing time	1-99999S can be preset
Water supply	Water flow rate＞10L/min±5% clean water without inclusion. This device is equipped with clean water filtration unit
Turntable	Diameter: Φ600mm, rotation speed: 1r/min, bearing capacity: ≤50kgs
Oscillating tube swing angle	Max. ±175° can be preset (Note: standard requires IPX3:120°; IPX4:360°, but due to there is turntable under oscillating tube during test, so 360° can not achieved during actual testing, if without turntable, then 360° can be achieved)
Power supply for this equipment	AC 380V, 50Hz, 4KW
Pressure gauge	0~0.25MPa
