Environmental Simulation Equipment Temperature and Humidity Test Chamber

Marka Adı:	Sinuo
Model Numarası:	SN881-G1800
Adedi:	1
Ödeme Şartları:	T/T
Tedarik Yeteneği:	Ayda 10 Set

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

ÇİN

Sertifika:

Calibration Certificate (Cost Additional)

Sıcaklık Sapması:

≤±2.0℃

nem sapması:

≤±3%

İç boyutlar:

G1000*D1000*Y1800mm

Dış boyutlar:

W1250*D2300*H2350mm

Isıtma süresi:

≧2-3°C/dk

Soğutma Süresi:

≧ 1 ° C/dk, ortalama yük yok

Sıcaklık aralığı:

-40 °C ~+150°C

Nem aralığı:

%20～%98 Bağıl Nem

Ambalaj bilgileri:

İhracat ambalajı

Yetenek temini:

Ayda 10 Set

Vurgulamak:

temperature humidity test chamber with warranty

environmental simulation test chamber

temperature test chamber for humidity control

Ürün Tanımı

Environmental Simulation Equipment Temperature and Humidity Test Chamber

Complied Standards & Clauses

It conforms to standards:

IEC60068-2-1:2007 “Environmental Testing-Part 2-1: Tests-Test A: Cold, IDT”

IEC60068-2-2:2007 “Environmental Testing-Part 2-1: Tests- Test B-Dry heat, IDT”

IEC60068-2-78:2012 “Environmental Testing-Part 2-78: Tests-Test Cab: Damp heat, steady state, IDT”

IEC60068-2-30:2005 “Environmental Testing-Part 2-30: Tests-Test Db: Damp heat, cyclic (12h+12h cycle), IDT”

Product Overview

The Temperature and Humidity Test Chamber is designed to simulate a wide range of environmental conditions — from extreme heat to intense cold and fluctuating humidity. It provides precise and stable temperature and humidity control, ensuring reliable testing of electronic components, electrical devices, plastics, and other materials. By recreating real-world storage and transportation conditions, this chamber helps you evaluate product durability, stability, and performance in demanding environments. Perfect for R&D, quality control, and certification testing.

Technical Parameters

Technical Parameters
Nominal Volume		1800L
Inner Size		W1000D1000H1800mm
External Size		W1250D2300H2350mm
Weight		Approx. 1050 kg
Temperature Range		-40 °C ~+150°C
Humidity Range		20%～98%RH(within 20°C–85°C, refer to temperature-humidity control chart; no active heat load)
Temperature Fluctuation		±0.5℃
Humidity Fluctuation		≤2.5%
Temperature Deviation		≤±2.0℃
Humidity Deviation		≤±3%
Heating Rate		≧2-3°C/min(average, no load)
Cooling Rate		≥1°C/min(average, no load)
Load Capacity		50 kg
Noise Level		A-weighted sound level ≤70 dB(A) (measured in a 25°C quiet environment, A-weighted, average of 9 points, 1m from source and 1m above ground)
Structural Features
Thermal Insulation Structure	1.Outer wall material: A3 steel plate with spray coating. 2.Inner wall material: Brushed stainless steel plate SUS#304. 3.Thermal insulation material for the box body: 100mm high-temperature-resistant rigid polyurethane foam. 4.Thermal insulation material for the door: 100mm high-temperature-resistant rigid polyurethane foam.
Bottom Structural Strength	The bottom of the test chamber is designed with track load-bearing capacity: ≤100kg/m² (load).
Air Conditioning Channel	1.Stainless steel long-shaft centrifugal fan: 4 units/90W. 2. Fan, heater, evaporator (also dehumidifier), drainage device, pressure balance port, adjustable air guide plate, temperature sensor.
Standard Configuration of the Test Chamber	1.Window: 400x600x40mm, 3 layers of vacuum tempered glass. 2.Embedded flat handle. 3.Door hinge: SUS #304 imported hinge. 4.Internal energy-saving light: LED energy-saving light. 5.Lead hole: φ50mm, 1 unit.
Door	1.Single door, hinge on the left, handle on the right (when facing the front of the chamber). 2.Equipped with a safety door lock mechanism (the door can be opened from inside the test chamber). The door is equipped with electric anti-condensation heating, and the hollow glass observation window has a viewing area of approximately (W400×H600mm). The door frame is equipped with anti-condensation electric heating.
Control Panel	Controller with 7-inch display, temperature (humidity) control display, operation indicator light, and lighting button.
Mechanical Room	Refrigeration unit, compressor water tray, pressure relief device, heating device.
Power Distribution Cabinet	Power distribution board, cooling fan, main power switch, transformer, intermediate relay, time relay, solid-state relay, AC contactor, circuit breaker.
Heater	1.Finned stainless-steel tubular heater. 2.Heating control mode: SSR (solid-state relay), non-contact periodic pulse width modulation. 3.Heating power: approximately 3KW.
Power Line Hole	Located on the back of the chamber.

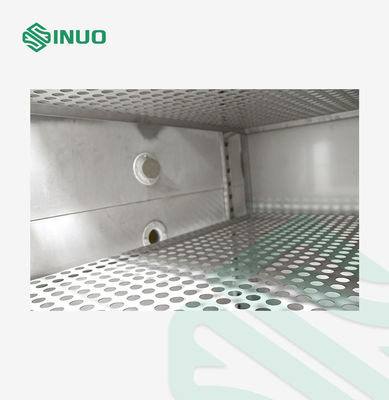

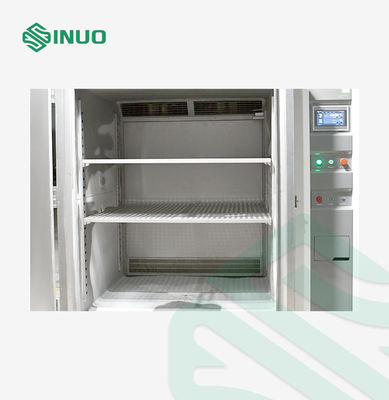

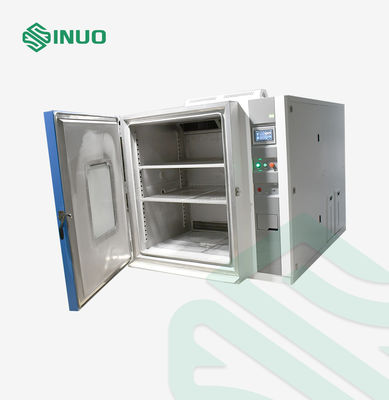

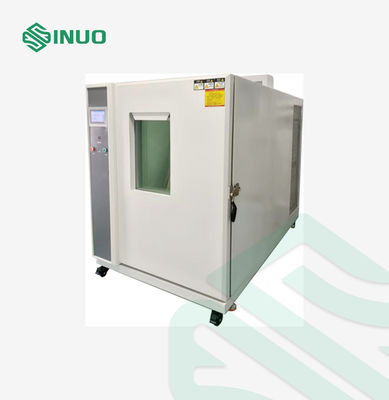

Details
