IPX5 IPX6 Automotive Parts Water Resistance Tester IP Code Test Equipment

IPX5 IPX6 Automotive Parts Water Resistance Tester IP Code Test Equipment

Marka Adı:	Sinuo
Model Numarası:	SN442
Adedi:	1
Ödeme Şartları:	T/T
Tedarik Yeteneği:	10 Sets Per Month

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Place of Origin:

China

Sertifika:

Calibration Certificate (Cost Additional)

IPX5 Nozzle Internal Diameter:

Ф6.3mm

IPX6 Nozzle Internal Diameter:

Ф12.5mm

IPX5 Delivery Rate:

12.5±0.625L/min

IPX6 Delivery Rate:

100±5 L/min

Pressure Gauge:

0~0.25MPa

Test Duration:

0.01S～99.9 min

Turntable Diameter:

Φ600mm

Rotation Speed:

1r/min

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Ürün Tanımı

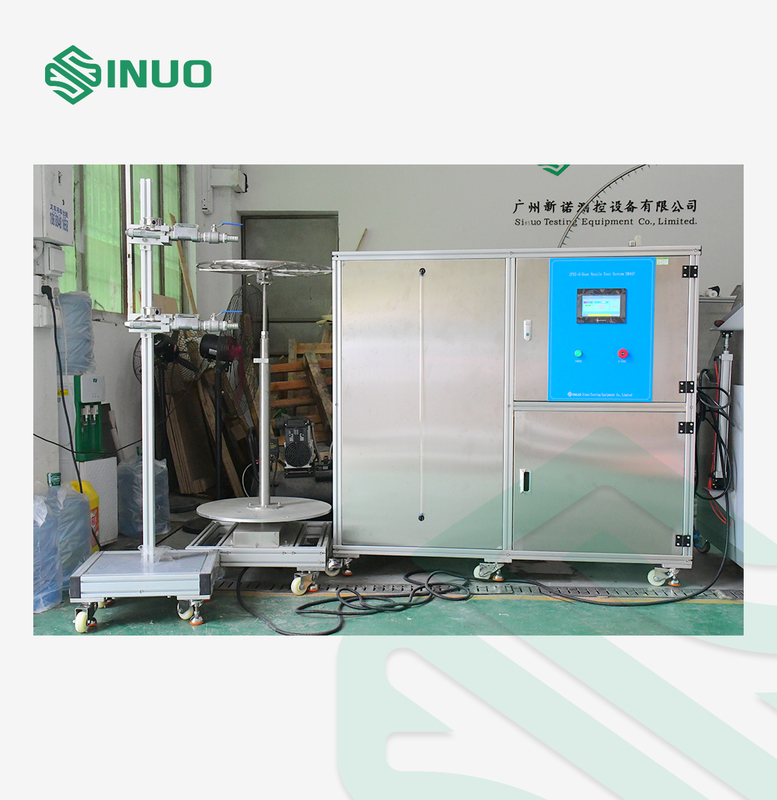

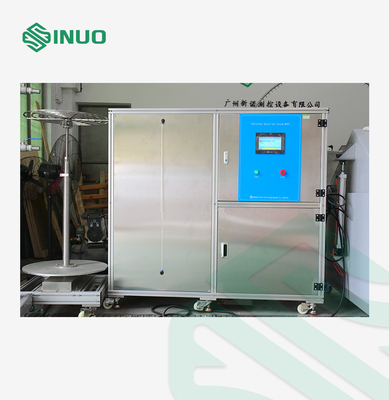

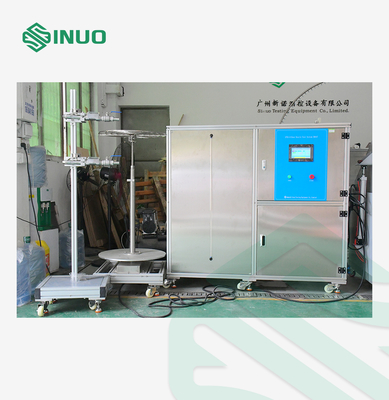

IPX5 IPX6 Automotive Parts Water Resistance Tester IP Code Test Equipment

Complied Standards & Clauses

It is designed and manufactured in accordance with the standard requirement of IEC 60529-2013 “Degrees of protection provided by enclosure (IP code)” IPX5 and IPX6.

Product Overview

The testing system is used to verify the protective performance of the enclosure for electronic and electrical products, automobiles, motorcycle parts, household appliances, seals and lamps under water jets at degree I IPX5 and IPX6.

This IPX5 and IPX6 water ingress testing equipment ensures that the water spray speed reaches the standard required value by controlling the water supply flow, the enclosure is sprayed from all practicable directions with a stream of water from the standard test nozzles as shown in IEC 60529 figure 6.

Technical Parameters

IPX5/6
Parameters of Hose Nozzle	IPX5: Ф6.3mm; IPX6: Ф12.5mm
Delivery Rate	IPX5: 12.5±0.625L/min IPX6: 100±5 L/min
Distance from Nozzle to Enclosure Surface	2.8m ((The distance from the nozzle to the center surface of the turntable, standard requires 2.5-3m)
Water Jet Directions	The angle of water jetting can be adjusted
General
Control & Operation	PLC and touch screen intelligent control system

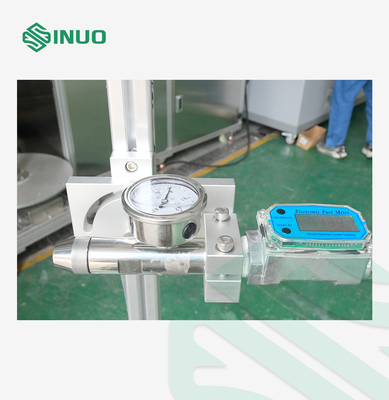

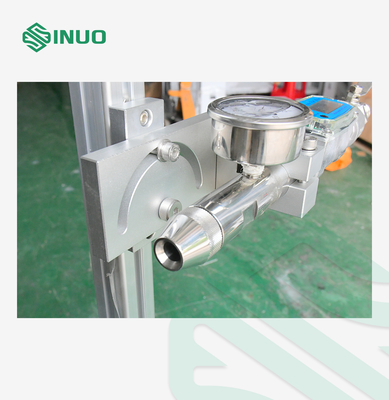

Nozzle Fixed Method	Spray nozzle and hose nozzles are fixed on the support
Pressure Gauge	0~0.25MPa, can be displayed
Test Duration	0.01S～99.9 min, can be preset
Turntable	Diameter: Φ600mm, rotation speed: 1r/min, bearing capacity: ≤50kgs
Water Storage Tank	This test system adopts open type structure, the test water is not recycled. The test system is equipped with an approximately 500L stainless steel water storage tank. The water storage tank is equipped with a water level float valve to automatically control the water inlet, and has high and low water level alarm detection, to effectively prevent the pump from being damaged due to dry water. The water storage tank and electrical control part are integrated.
Safety Protection	Phase sequence protection, leakage protection, water shortage protection, abnormal protection.
Power Supply	AC380V,50Hz, 4KW

Details
