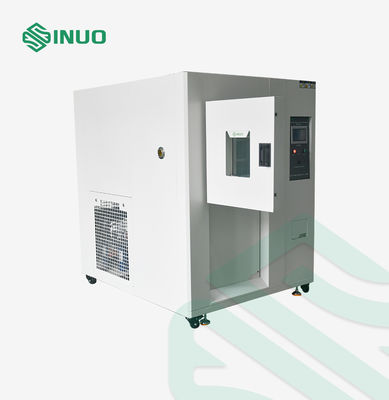

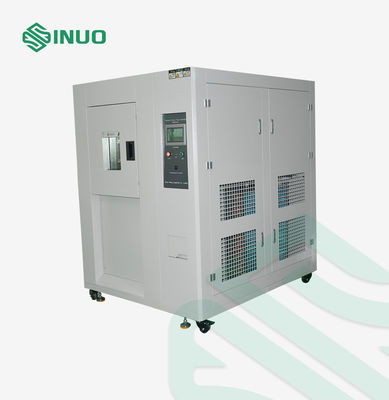

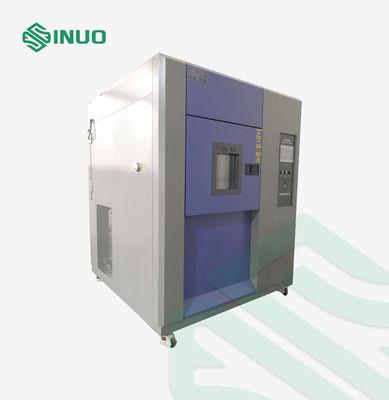

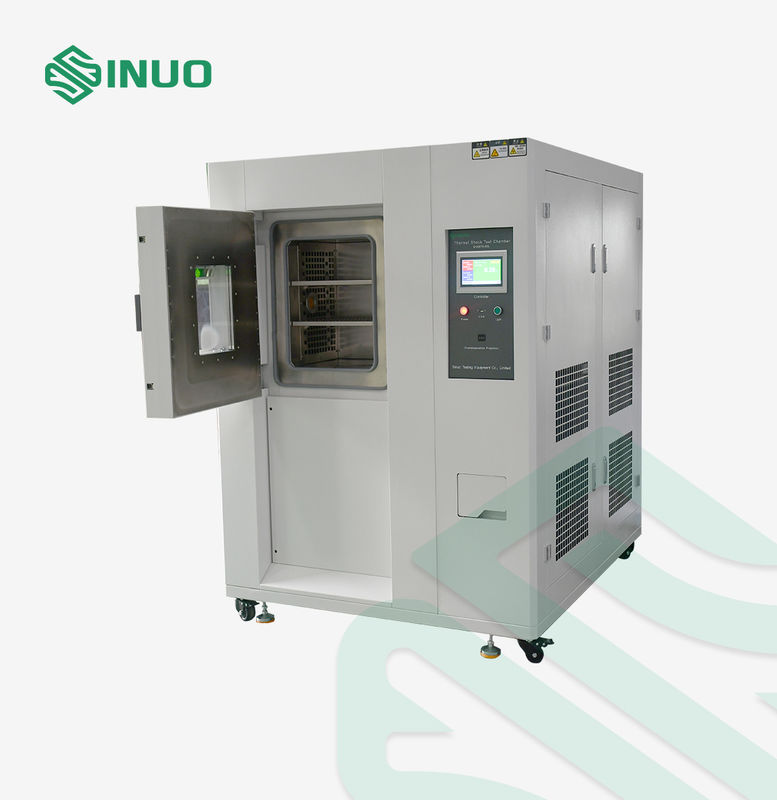

Thermal Shock Test Chamber for Rapid Temperature Change Testing IEC 60068-2-14

Thermal Shock Test Chamber for Rapid Temperature Change Testing IEC 60068-2-14

Marka Adı:	Sinuo
Model Numarası:	SN887-144L
Adedi:	1
Ödeme Şartları:	T/T
Tedarik Yeteneği:	10 Sets Per Month

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Place of Origin:

China

Sertifika:

Calibration Certificate (Cost Additional)

Outer dimensions:

1850×2100×1770 (W*D*H)

Inner box dimensions:

600×600×400mm (W*D*H)

Low temperature zone preheating temperature:

RT ～ - 60℃≤60min

High temperature zone preheating temperature:

RT～+200℃≤60min

Constant temperature time:

More than 30min

Shock recovery time:

-60～+200℃ ≤5s

Temperature range:

-60～200℃

Sample zone temperature fluctuation:

±0.5℃

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Ürün Tanımı

Thermal Shock Test Chamber for Rapid Temperature Change Testing IEC 60068-2-14

Complied Standards & Clauses

IEC 68-2-2 Basic environmental testing procedures for electric and electronic products Tests B: Dry heat

IEC 68-2-1 Basic environmental testing procedures for electric and electronic products Tests A: Cold

IEC 60068-2-14:2009, Environmental testing Part 2-14: Tests-Test N: Change of temperature, IDT

Product Overview

Experience precision, durability, and performance with our Thermal Shock Test Chamber, engineered to simulate extreme temperature changes in a controlled environment. This test system is designed to evaluate the reliability and structural integrity of your products when subjected to rapid temperature variations — a critical factor in quality control for electronic components, automotive parts, and advanced material industries.

Compliant with IEC 60068-2-14, IEC 68-2-1, and IEC 68-2-2 standards, this chamber delivers accurate, repeatable results to meet international testing requirements. By keeping the Device Under Test (DUT) stationary during exposure to alternating hot and cold zones, the system ensures minimal mechanical stress while maximizing thermal impact.

Built for a wide range of industries including electronics, plastics, rubber, automotive, and aerospace, our thermal shock chamber helps you identify early failures, improve product life, and reduce the risk of field returns. Its user-friendly interface, robust insulation, and safety features make it a smart investment for any modern R&D or quality assurance lab.

Note: Not suitable for biological samples, corrosive substances, electromagnetic sources, or flammable materials.

Technical Parameters

Inner box dimensions	600×600×400mm (WDH)
Outer dimensions	About 1850×2100×1770 (WDH) subject to actual size
Temperature range	-60～200℃
Inner box material	SUS304 stainless steel plate, thickness 1.0mm.
Outer box material	Cold rolled plate painted, thickness 1.35mm.
Box structure	Equipped with independent product testing area, high temperature heat storage area, and low temperature cold storage area.
Sample rack	Adopt high temperature resistant 200℃, low temperature resistant -80℃ silicone door seal, good sealing performance. The door will not leak due to temperature changes that make the door seal harden.
High and lowtemperature shock constant temperature time	More than 30min
High temperature zone preheating temperature	RT～+200℃≤60min
Low temperature zone preheating temperature	RT ～ - 60℃≤60min
Sample zone temperature fluctuation	±0.5℃ (no load, constant state)
Temperature deviation	±2℃ (no load, constant state)
Temperature accuracy	±0.01℃

Air circulation system

Bare wire electric heater.

Box door

a. Yizheng motor b. Stainless steel extended axis c. Multi-wing fan blade (SIROCCO FAN).

Observation window

Single door.

Door sealing strip

Three-layer conductive film heating tempered heat-resistant insulating glass (with defogger).

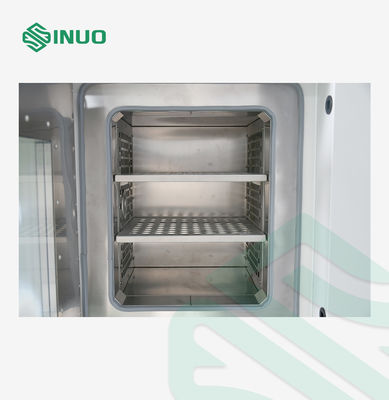

Sample rack

Adopt high temperature resistant 200℃, low temperature resistant -80℃ silicone door seal, good sealing performance. The door will not leak due to temperature changes that make the door seal harden.

Refrigeration system

Compressor

German Bock semi-hermetic compressor or German Bitzer semi-hermetic compressor

Refrigerant

Non-fluorine environmentally friendly refrigerant R404A R23, in compliance with environmental regulations, safe and non-toxic

Condenser

(Water chiller)

Shell and tube condenser (water-cooled) and well-known brand chiller

Parameter

Product model	DBW-UP-20	Power supply	AC220V
Working voltage	DC24V	Rated power	50W
Inlet water source	Tap water	Water output	20L/H
Inlet water source	TDS≤300ppm	Water inlet pressure	0.1-0.3Mpa
Heavy metal ions	＜0.1ppb	Suspended solids, silica	≤0.01mg/L
PH value range (25℃)	6.5-7.5	Microorganisms/bacteria	≤1CFU/mL
Particles (＞0.22μm)	＜1/ml	Total organic carbon TOC	＜10ppb
Product water conductivity	≤0.1us/cm	Water resistivity	＞10MΩ.cm
Dimensions (LWH)	420520580MM	Working environment	5-40℃, relative humidity ≤90%
